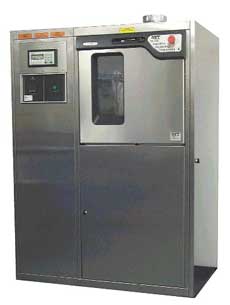

Aqua Batch Series 500, 1000, 1000 CL, 1500 OL, 1500 CL

System Features

• 120 VAC, 20 amps
• Standard system maximum board size: 11" x 20" (28cm x 51cm); with upper basket removed maximum board size is increased to 18" x 20"
• Modular polypropylene cabinet
• DI water compatible
• 120 VAC, 20 amps
• On-board wash/rinse heated reservoir
   - Ambient to 140° F
   - Magdrive pump
   - Auto fill and level control

• On-board wash/rinse heated reservoir
   - 3.5 gallon capacity
   - Heater to maintain process temperature

• Maneuverable with caster based chassis
• Built-in power transfer to drain, provides 15 foot of head
• Small footprint of 26" deep x 45" wide x 63" tall • Computer Control
   - Controls number of process cycles
   - Computer entry of resistivity criteria
   - Visual Basic on Windows XP platform
   - Automatic programmable response when
   - selected resistivity reading is achieved
   - Manually set temperature control of process reservoir, temperature monitoring of cleaning process
   - Networkable

Process Features

• Cleans and tests automatically
• Electromechanical Controller
• Selectable Processes: Prewash, Wash, and Dry
• Selectable Pass/Fail final resistivity: 100K, 200K, 500K, 1M
• Conforms to NFPA 79


System Configurations

• AquaBatch 1000 OL: Open loop wash, Open Loop Rinse, Water Only
• AquaBatch 1000CL: Closed loop wash, Closed Loop Rinse, Water Only
• AquaBatch 1500 OL: Closed loop wash, Open Loop Rinse, Aqueous Mixtures
•AquaBatch 1500 CL: Closed loop wash, Closed Loop Rinse, Aqueous Mixtures
